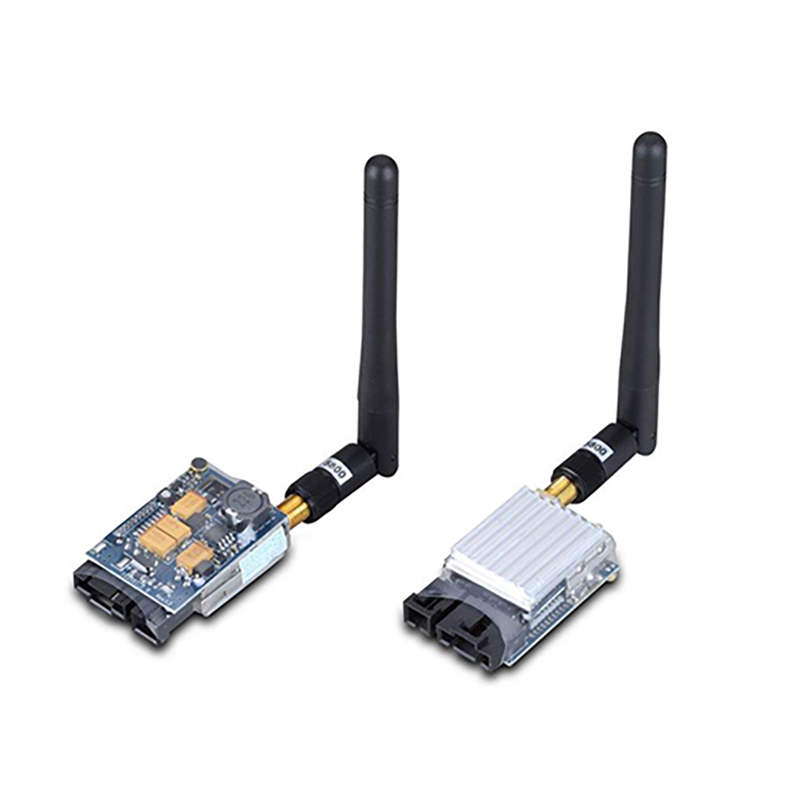

FPV Mapping 5.8G Mapping Module Drone Mapping Device 400mw Wireless Audio/Video Transmission TS353
|Product Name:||FPV Mapping 5.8G Mapping Module Drone Mapping Device 400mw Wireless Audio/Video Transmission TS353|
|Model No.:||FPV Mapping 5.8G Mapping Module Drone Mapping Device 400mw Wireless Audio/Video Transmission TS353|
|Minimum Order Quantity:||1 set Setsets|
|Supply Ability:||300 Sets per Year|
Transmit Frequency: 5645-5945MHz; 8 Channels
ch1:5705mhz;ch2:5685mhz;ch3:5665mhz;ch4:5645mhz;ch5:5885mhz;ch6 :5905mhz;ch7:5925mhz;ch8 : 5945mhz
Transmit power: 25dBm/400mw
Frequency control: Built-in frequency phase-locked loop
AV input: direct input of analog audio and video signal strings
Supply voltage: 7-14V
Transmitter appearance and 200mW the same, small, exquisite, light weight
200mW package number is TS351, 400mW package number TS353, 500mW package number TS352 can be used with 2.4G remote control! No interference with each other!
Transmitter module using a wide dynamic 7-15V power supply (support 2-4S lithium), but the actual camera considerations must be 3S battery or 12V voltage regulator module power supply, comes with MIC microphone, compact size.
With MIC sound transmission, to adjust the sound volume size, please adjust the potentiometer next to the MIC!
5.8G 400mw map transmission, is the gospel of FPV and aerial photography enthusiasts. As we all know, 200mw map transmission, in the practical application. The distance is a bit insufficient, 500mw. Although the distance is farther than 200mw. But. Due to the larger size, and, with the cooling fan, not only caused by the increase in weight, power consumption is also higher, more critical is. The fan can cause jitter in the image transmission.
This 400mw transmitter completely solves the above problems. It has good communication distance. And mini size. Similar to the size of 200mw. Good solution to the distance, volume, weight and other negative factors. It is the first choice for FPV and aerial photography.
