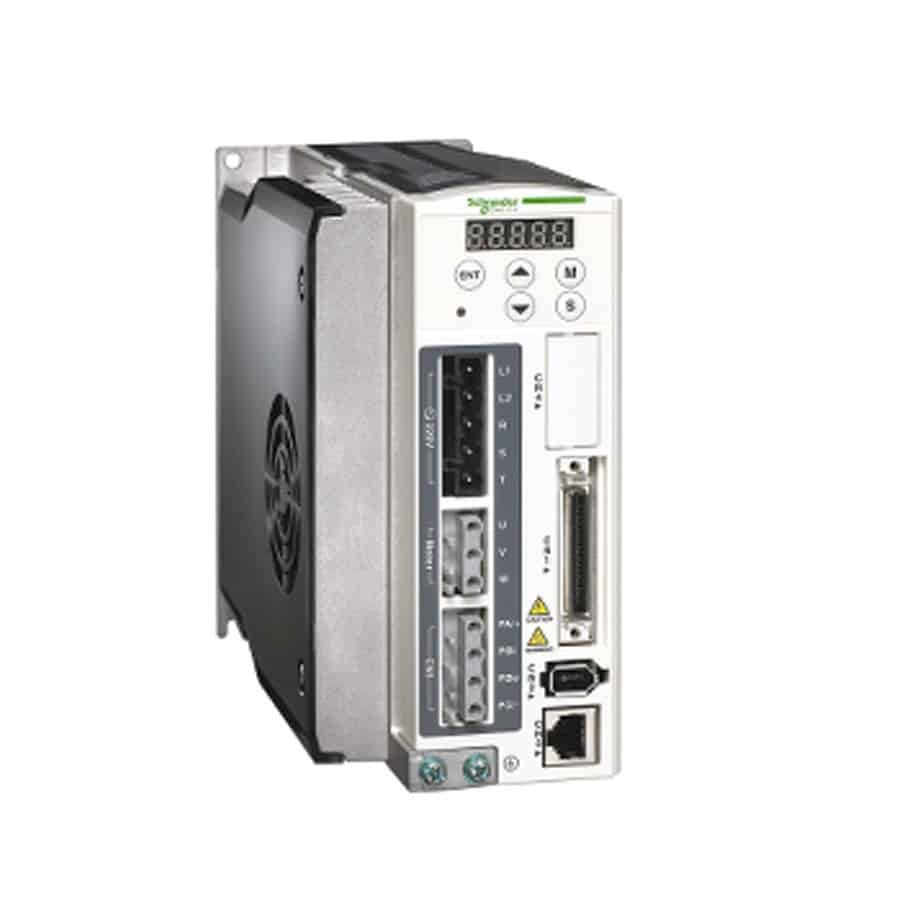

LXM23DU07M3X Schneider Electric | Motion Servo Drive LXM23 Spot dealer
Product Name: | LXM23DU07M3X Schneider Electric | Motion Servo Drive LXM23 |
Inventory: | Mitsubishi |
Manufacturer: | LXM23DU07M3X Schneider Electric | Motion Servo Drive LXM23 |
Model No.: | LXM23DU07M3X |
Minimum Order Quantity: | 1 set Setsets |
Supply Ability: | 300 Sets per Year |
Payment Terms: | TT,LC,DIA,D/P,WesternUnion,MoneyGramPayPal |
Download: | LXM23DU07M3X |
Initiate Inquiry
Estimated Lead Time : Usually ships in 1-10 working days.
Manufacturer : Schneider Electric
Product No. : LXM23DU07M3X
Product Type : Motion Servo Drive LXM23
Range of product : Lexium 23 Plus
Supply frequency : 50/60 Hz (- 5…5 %)
Network frequency limits : 47.5…63 Hz
Continuous output current : 5.1 A
Continuous power : 750 W at 220 V
Discrete input voltage : 12…24 V DC logic
Type of cooling : Integrated fan
Dimensions (LxWxH) : 18 cm x 8.5 cm x 16.2 cm
Weight : 2.2 Kg
Shipping Weight : 4 Kg
LXM23DU07M3X Schneider Electric | Motion Servo Drive LXM23
Product Series
Lexium 23 Plus
product type
Motion Servo Drive
product short name
LXM23
Additional information
drive format
book
Number of grid phases
Phase 3
Simplex
Rated supply voltage [Us]
220 V single phase (tolerance: – 10…15 %)
220 V 3 phase (tolerance: – 20…15 %)
Power supply voltage range
200…255 V single phase
170…255 V 3 phase
power supply frequency
50/60 Hz – 5…5 %
network frequency limit
47.5…63Hz
Continuous output current
5.1A
continuous power
750 W at 220 V
Nominal power
0.75 kW at 220 V
maximum leakage current
3.5 mA
The output voltage
<= supply voltage
electrical insulation
between power and control
cable type
Shielded twisted-pair cable (single or pair) (temperature: 0…55 °C)
Electrical connections
Terminal, clamping force: 1.3 mm², AWG 16 (L1-L2)
Terminal, clamping force: 2.1 mm², AWG 14 (R, S, T)
Terminal, clamping force: 0.82 mm², AWG 18 (U, V, W)
Terminal, clamping force: 2.1 mm², AWG 14 (PA/+, PBe)
Tightening torque
PE (ground): 1.4 N.m
Discrete input quantity
8 programmable discrete inputs
Digital input type
Programmable (CN1
Discrete input voltage
12…24 V DC for logic
discrete input logic
Positive or Negative (CN1)
Number of discrete outputs
5
output type
Logic output (CN1) 12…24 V DC
Discrete output voltage
12…24V DC
discrete output logic
Positive or Negative (CN1)
Number of analog inputs
2
absolute accuracy error
0.01 %
Analog input type
V_REF voltage analog input: – 10…10 V, impedance: 10 kOhm
T_REF voltage analog input: – 10…10 V, impedance: 10 kOhm
Control signal type
Servo motor encoder feedback
protection type
Protection against reverse voltage: input signal
Protection against short-circuit output signal: Output signal
Overcurrent Protection: Motor
Overvoltage: motor
Undervoltage: Motor
overheating: motor
Overload: motor
Overspeed: motor
Abnormal pulse control command: drive
communication interface
Modbus, integrated
port type
RJ45 (CN3) for serial port Modbus
access method
Slaves)
physical interface
2-wire RS485 multidrop for serial port Modbus
transmission rate
configuration
LED status
LED LED charging
Signal transmission function
Servo status and fault codes 5 7-segment display unit
logo
CE
cooling method
integrated fan
operating position
vertical
width
85 mm
high
162 mm
depth
180 mm
net weight
2.2kg
environment
EMC filter
No EMC filter
electromagnetic compatibility
EMC immunity level 3 conforming to EN/IEC 61000-4-2
EMC immunity level 3 conforming to EN/IEC 61000-4-3
EMC immunity level 3 conforming to EN/IEC 61000-4-5
EMC immunity level 4 conforming to EN/IEC 61000-4-4
EMC immunity with additional EMC filter conforms conforms to EN/IEC 61800-3 environments 1 and 2
Conducted and radiated emissions with additional EMC filter conforms conforms to EN/IEC 61800-3 environments 1 and 2 category C2, C3
Standards compliant
EN/IEC 61800-5-1
certified product
C-Tick
cULus 508
IP rating
On upper part: IP20 (without protective cover)
On upper part: IP41 (with protective cover)
Anti-vibration
Peak to peak 0.075 mm (f= 10…57 Hz) conforming to IEC 60068-2-6
1 gn (f= 57…150 Hz) conforming to IEC 60068-2-6
impact resistance
15 gn for 11 ms conforming to IEC 60068-2-27
Relative humidity
Class 3K3 (5 to 85 %) without condensation or dripping water conforming to IEC 60721-3-3
ambient temperature
0…55 °C according to UL
storage environment temperature
-20…65°C
working altitude
<= 1000 m None
> 1000, < 2000 continuous power derating 1%/100m
packaging unit
LXM23DU07M3X Schneider Electric | Motion Servo Drive LXM23
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
14.5 cm
Package 1 Width
21.0 cm
Package 1 Length
23.5 cm
Package 1 Weight
2.106 kg
Unit Type of Package 2
S06
Number of Units in Package 2
18
Package 2 Height
73.5 cm
Package 2 Width
60.0 cm
Package 2 Length
80.0 cm
Package 2 Weight
50.908 kg
LXM23DU07M3X Schneider Electric | Motion Servo Drive LXM23
Contract warranty
Warranty
18 months
